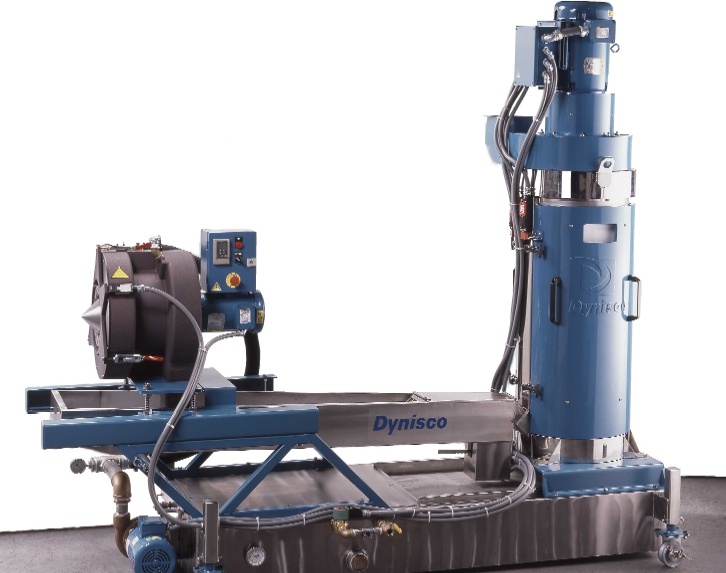

Nordson Xaloy's in-line pelletizer, the WRP-12i. I designed the dryer, the cylindrical portion on the right

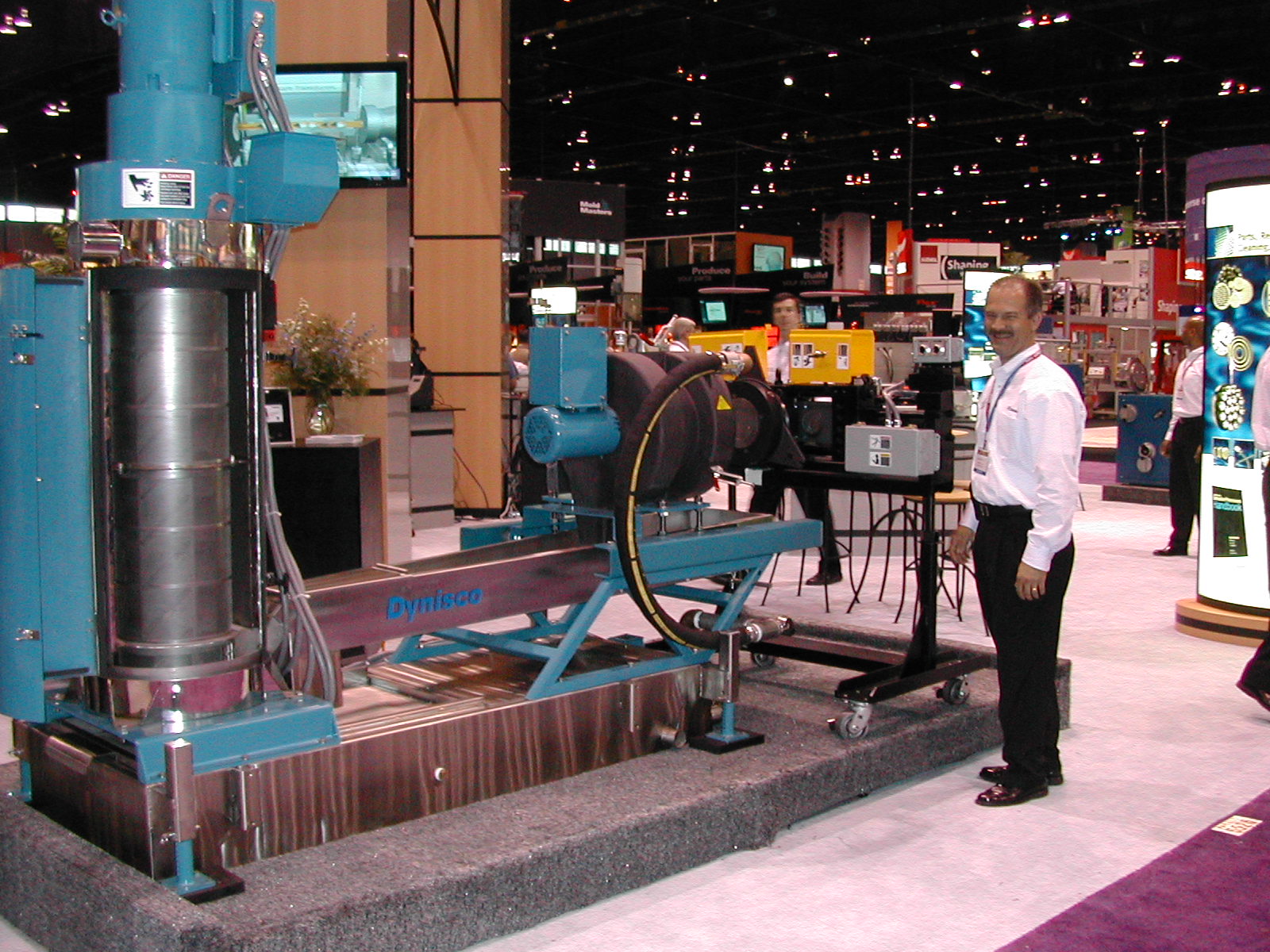

WRP-12i at the National Platics Expo

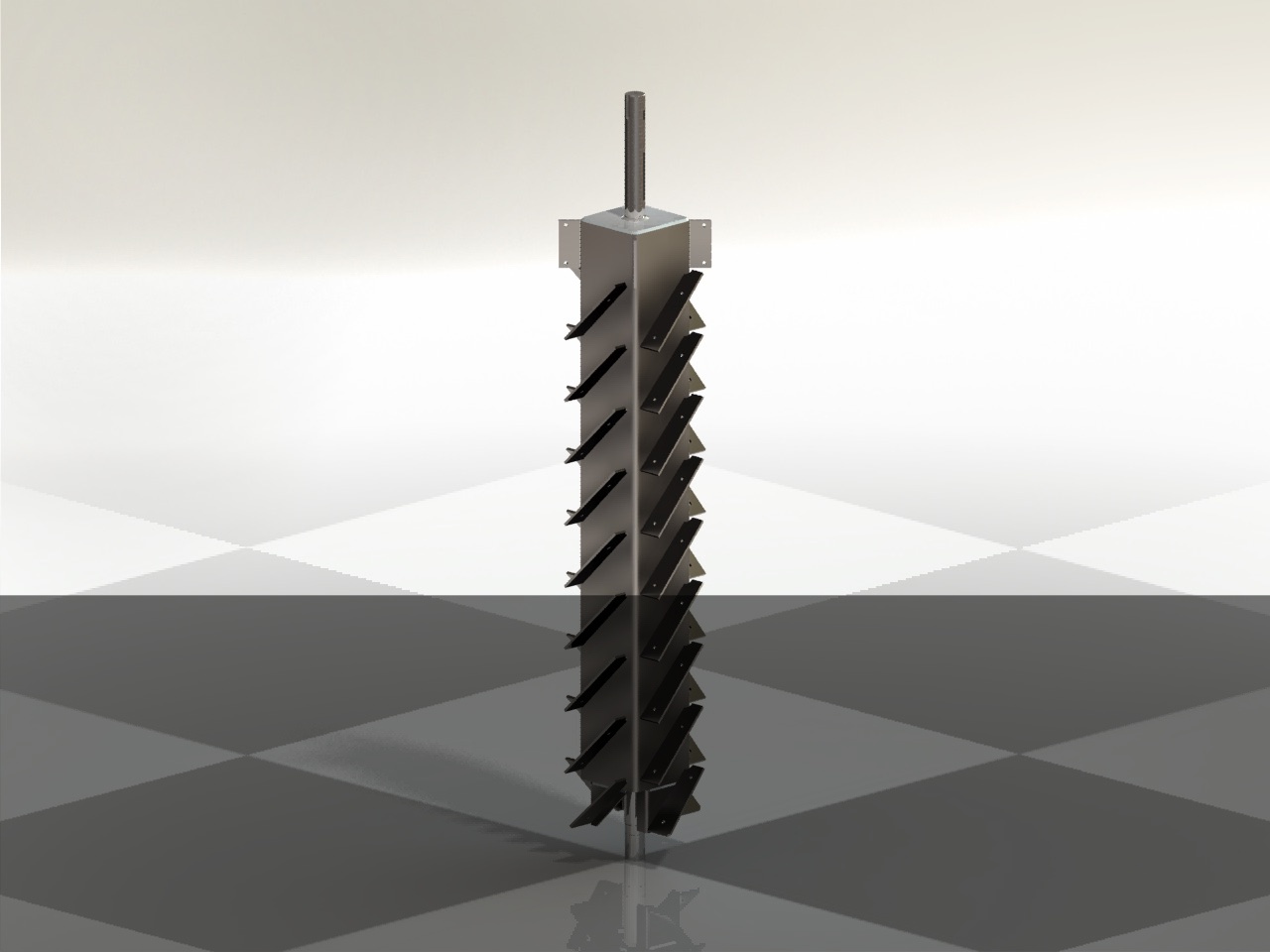

WRP-12i's precision balanced Rotor. Rendered using SolidWorks

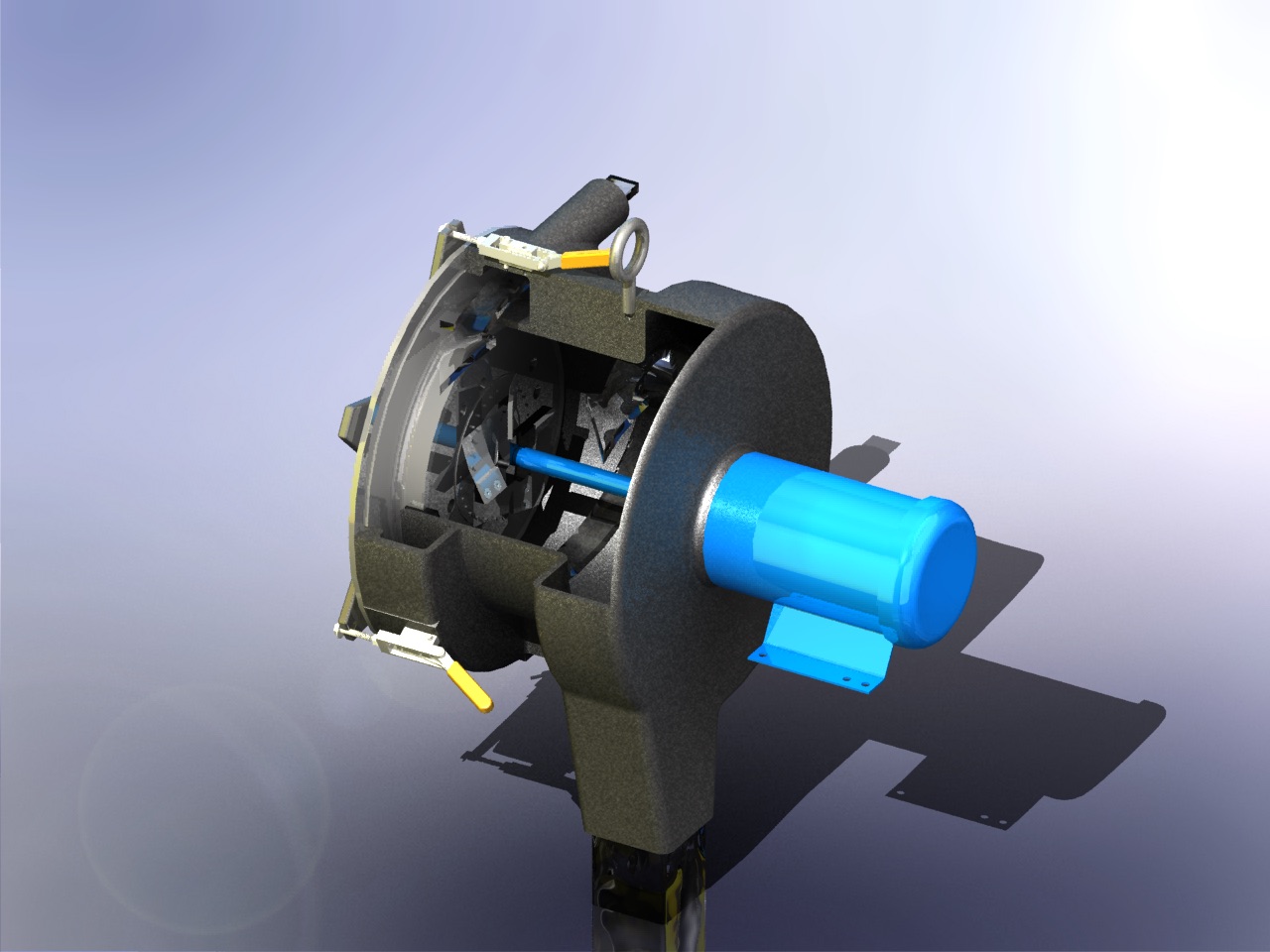

Rendered cutaway view for operating manual

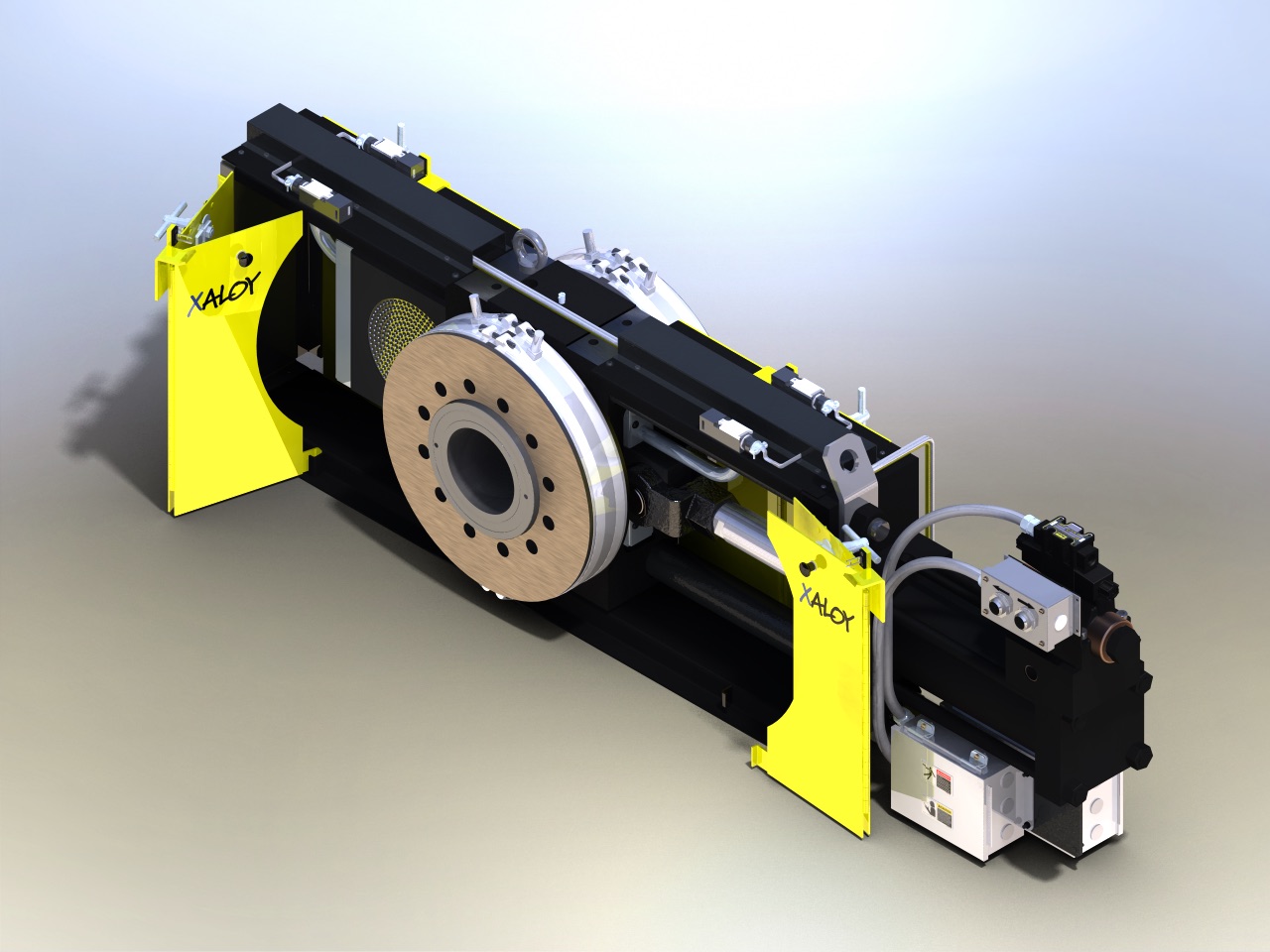

Xaloy EH-80 rendering in SolidWorks. It uses hydraulic pressure to change filtration screens in a plastics extrusion line

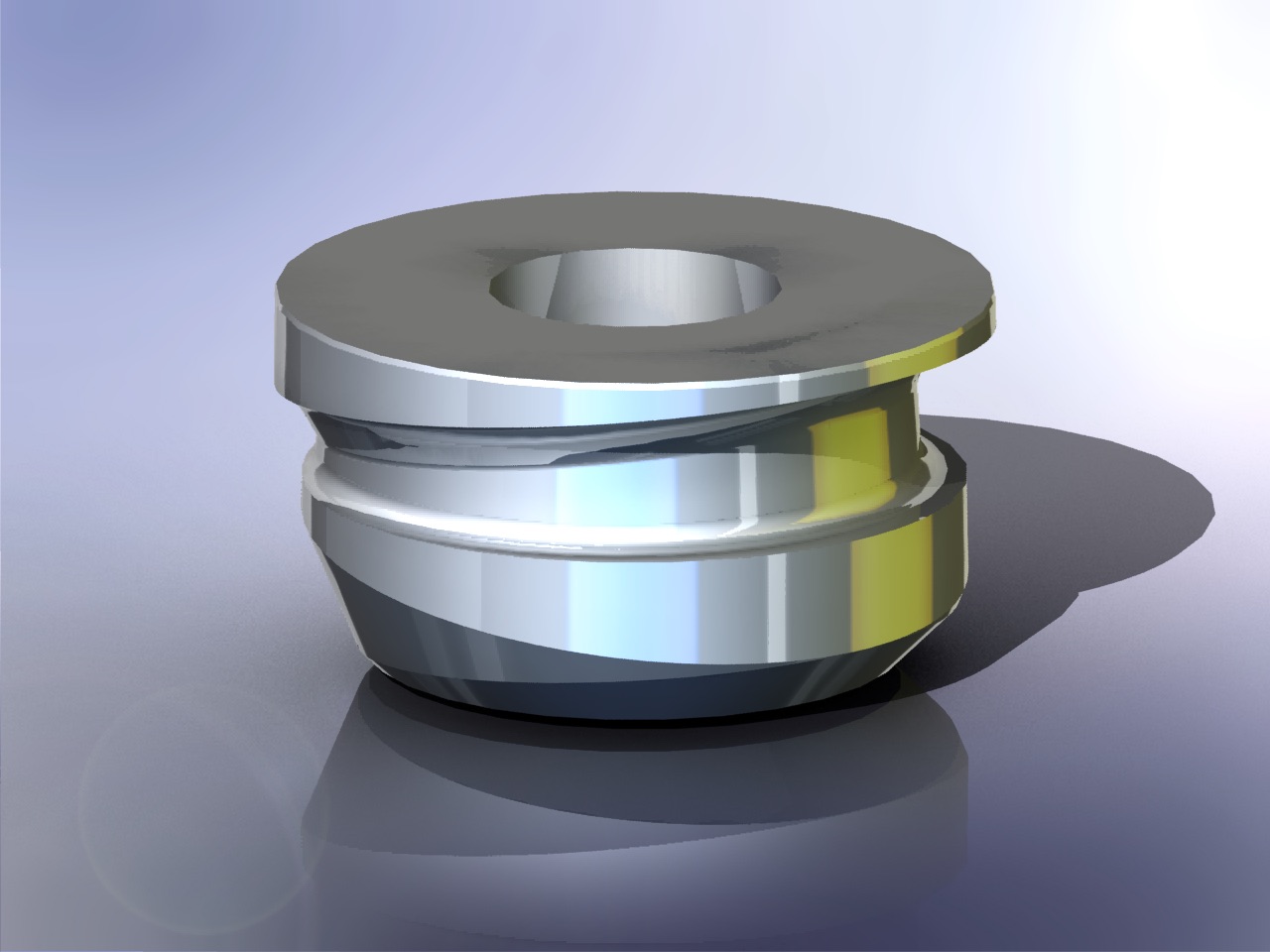

SolidWorks rendering showing unique geometry of the WRP-35s Mandrel that allows for uniform distribution of polymer across the die plate

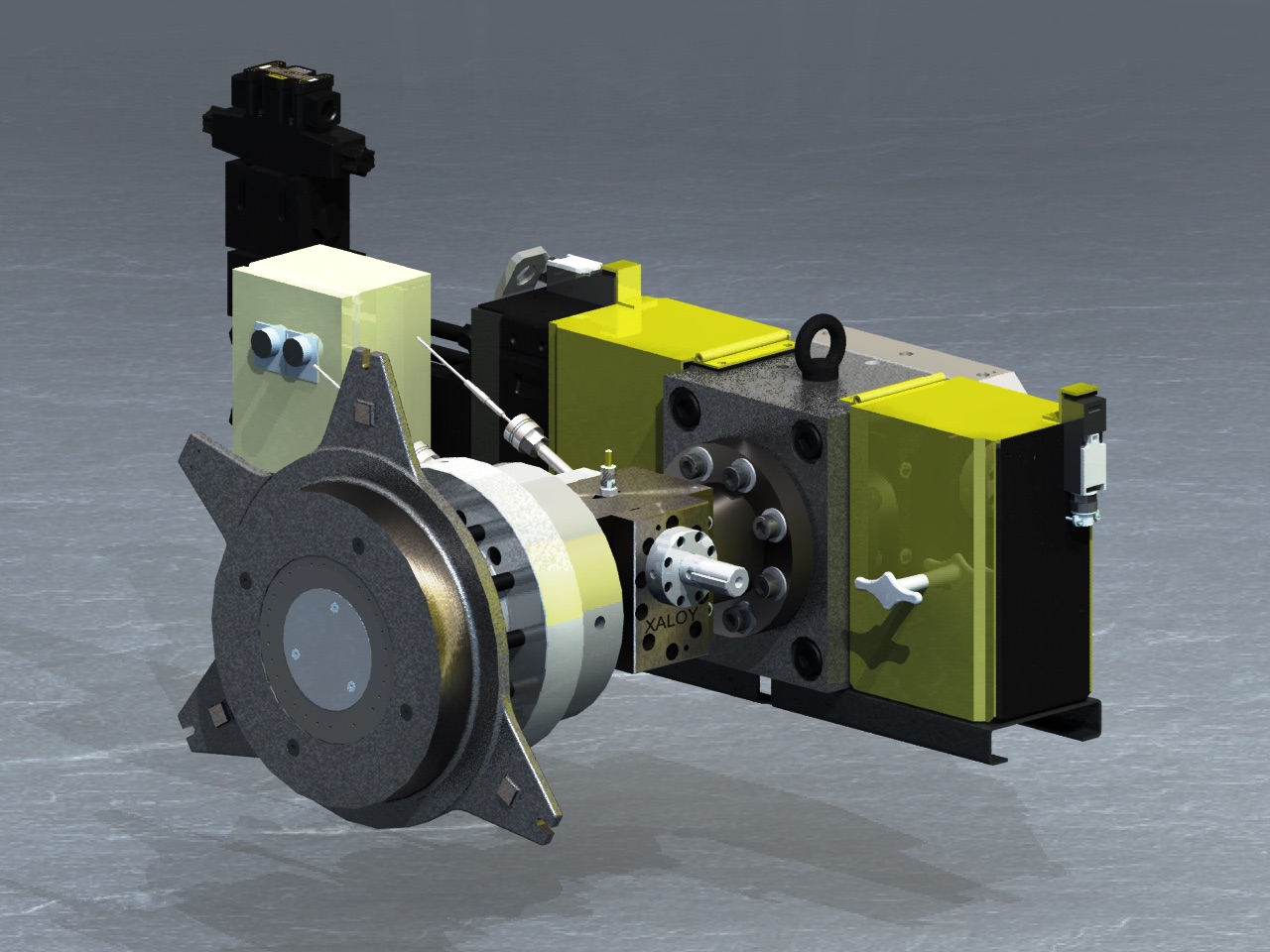

SolidWorks rendering of a typical Xaloy Pump system, including a Pelletizer die, Gear Pump, and Screen Changer

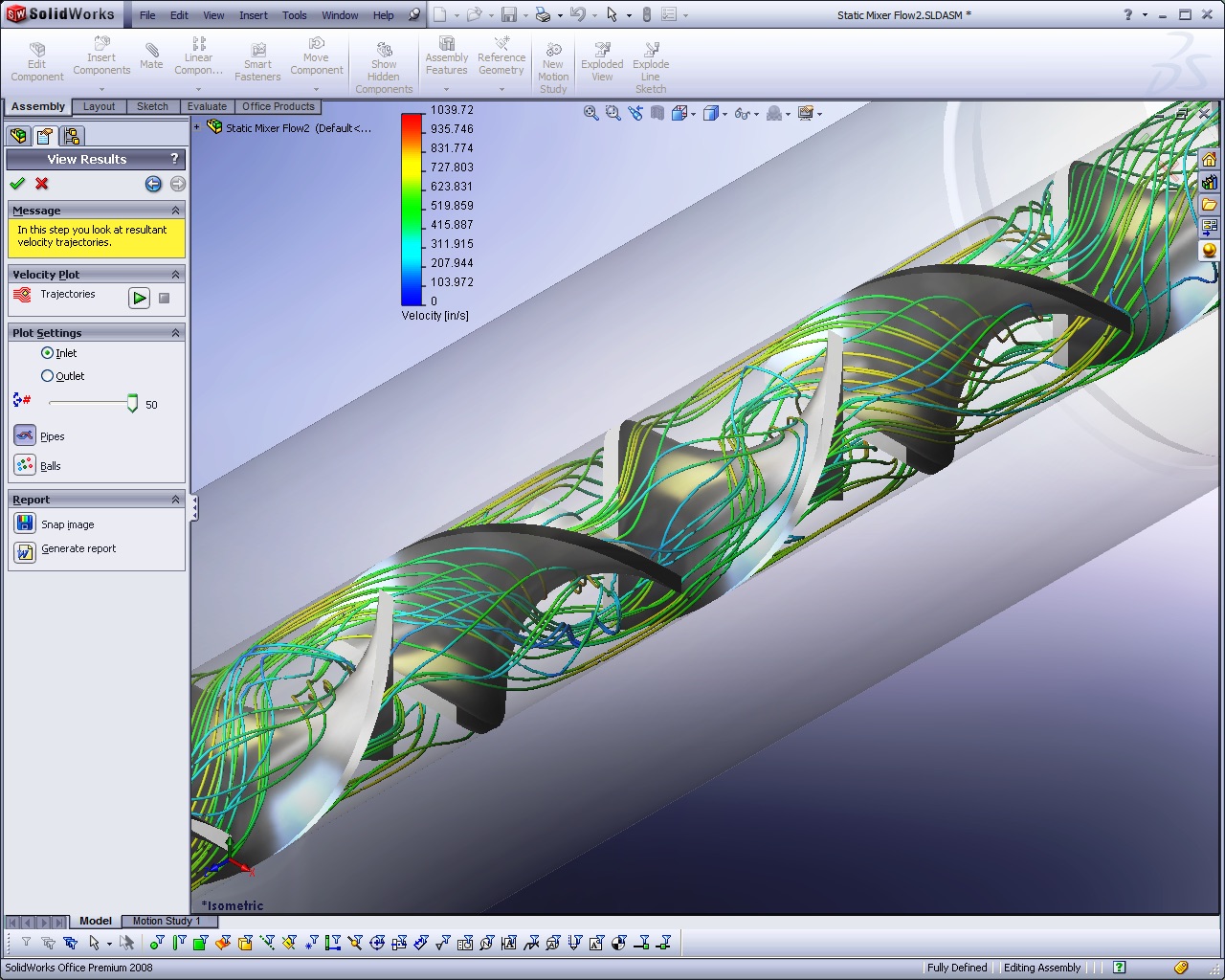

I used SolidWorks' fluid dynamics package to show how polymer flowed through Nordson XALOY's Static Mixer
This key cutting machine is unique in that it can either duplicate an existing key or cut a new key to your specifications

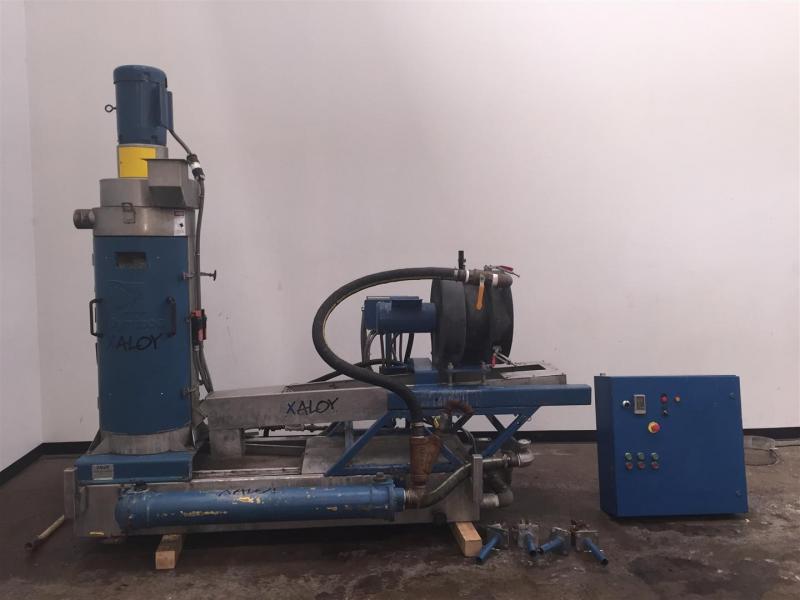

WRP-12i manual written by William Turk
All images used with permission from Xaloy Extrusion
